'NGBNET 1000' is using ADSL technique, support 10/100Base T/TX Fast Ethernet with 4port, Full Rate Max.
Downstream 8Mbps Max.?
Upstream 1.0Mbps and G.Lite mode.
It is the most optimal solutions Broadbanders who the Broadband network service offer to ADSL subscriber - small & middle office, SOHO request for multi IP of small scale.

Enjoy The Economic Network

- Fast, stable 4Port 10/100 Mbps Ethernet Hub have built-in
- Both the better efficiency with space and popularization in price unification ADSL
- Combined Modem , Hub and IP Sharer
- FULL Rate (Maximum downstream : 8Mbps, Upstream : 1Mbps) , support ANSI T.413 Issue 2

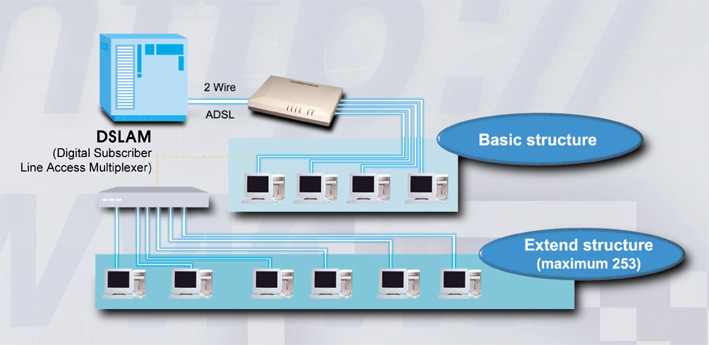

- Possible using internet ( the greatest 253persons ) a several PC(four) by one Router
- DHCP & fix IP , DHCP function in order to IP allotment
- Supporting ITU-T G.992.1 ( G.dmt ) and G.992.2 ( G.lite )

Specification

Model Name	NGBNET 1000
Interface	IEEE 802.3, RJ45 Connector 4 Port
Standard	ANSI T1.413 Annex A
Date Rate	G.DMT Down : 31- 8129kbps Up : 32- 768kbps G.Lite Down : 32 - 1536 Up : 32 - 512kbps
AAL & ATM	ATM Forum, AAL5 Support ATM Qos : UBR, CBR
Routing Bridge	RFC 2364 PPP Over ATM RFC 1483 Bridge Over ATM Routed IP Over ATM RFC 1577 Classical IP Over ATM RFC 791 IP PPTP, L2TP
Management	SNMPM TFTPM BOOTP, Telnet , HTTP
Main Chip	Virata Helium 210
